Marbridge Retirement Center Under Construction
Cheshire, CT

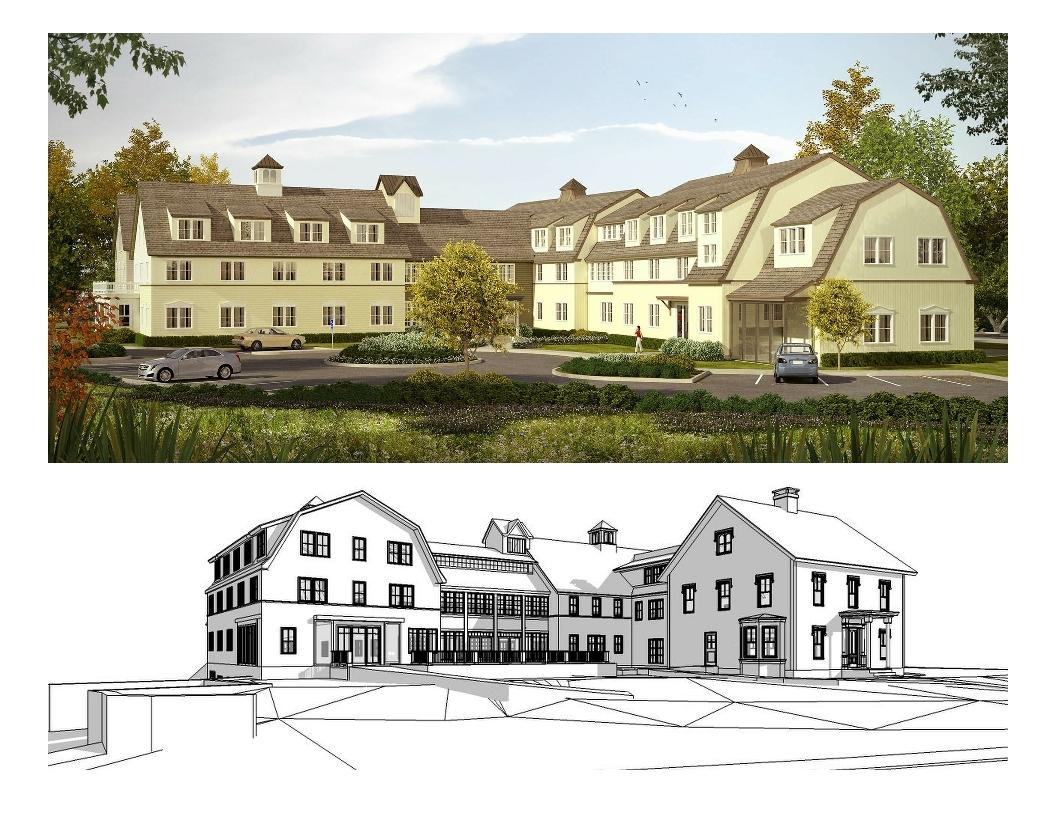

Construction is underway for the 48,000 SF expansion of the luxury retirement center in Cheshire, CT. In operation since 1957, Marbridge’s need to increase capacity led to the project’s conception in 2016. Construction will proceed in two phases to minimize disruption to current residents. A new addition will be built during Phase I and will house core functions of the facility as well as housing units. Residents will be moved into the addition for Phase II, during which the original 6,600 SF facility will be demolished and replaced with a new structure.

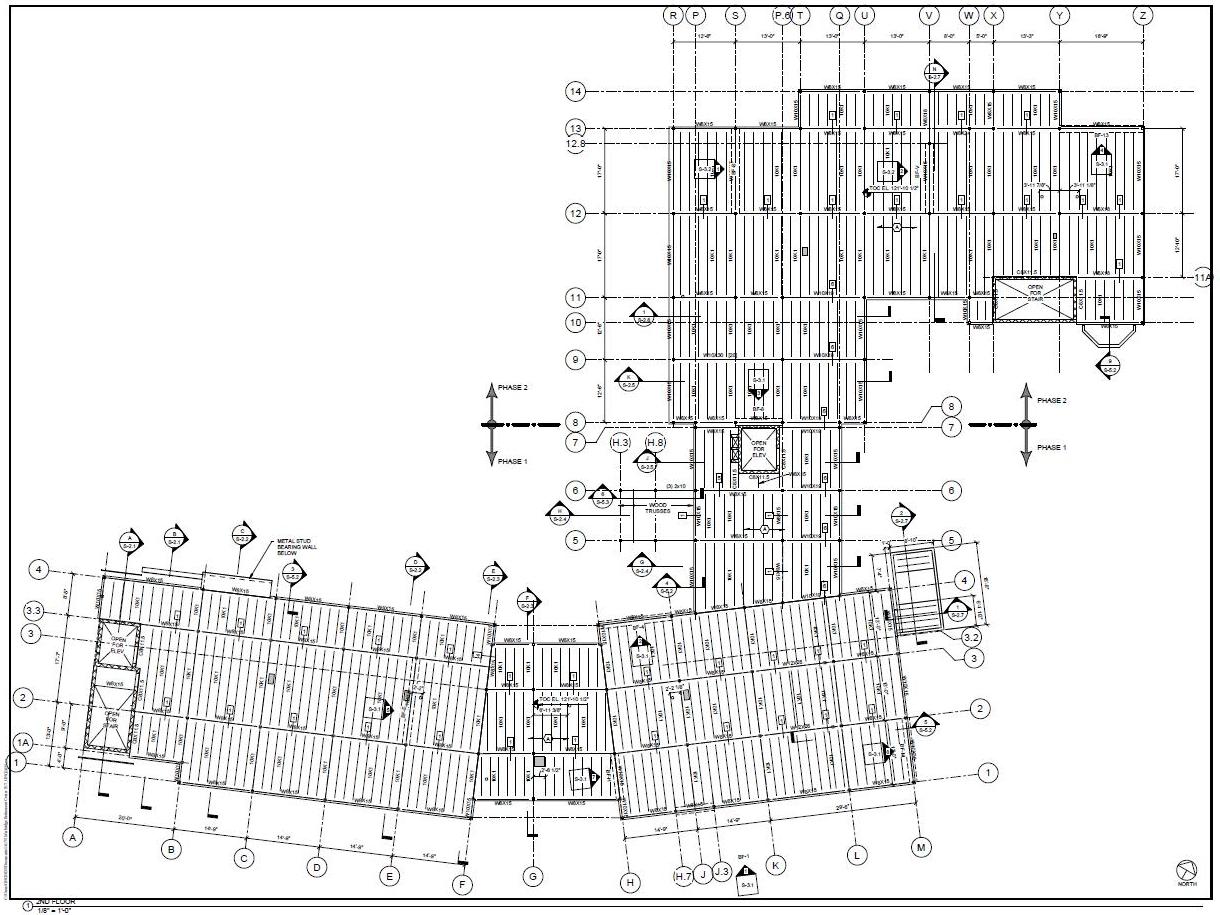

GNCB is providing structural engineering and geotechnical engineering services for this project. The new structure will be a mixture of structural steel framing, steel bar joists, cold-formed steel bearing walls, and prefabricated wood trusses. The lateral system consists of chevron frames located throughout the complex. Concrete foundations will consist of spread and strip footings placed on compacted structural fill.
Architect: Williams Architects
