CSCE Honors Holdredge Garage at 2017 ACE Awards

  • By GNCB
  • 17 May, 2017

Westerly, RI

GNCB was honored by the CT Society of Civil Engineers (CSCE) at the 2017 Achievement in Civil Engineering (ACE) Awards Ceremony this May for the Adaptive Reuse of Holdredge Garage in Westerly, RI. The project received both the Structural Award of Merit and the Sustainability Award of Merit .

The historic Holdredge Garage (c. 1885), now Lanphear Livery, in Westerly, RI was built and enlarged in several stages in the late 19th century as a livery stable and staff housing for the Watch Hill summer hotel and cottage resort. In the early 20th century, the building was converted from a livery to automobile storage and repair. The Rhode Island Historical Preservation and Heritage Commission approved the adaptive reuse of the property as a RI Historic Tax Credit project in 2013.



GNCB’s structural engineering, geotechnical engineering, and historic preservation groups serviced this project starting with the condition assessment of the six conjoined structures, through design for the complex’s stabilization and adaptive reuse, and through construction.

The project present numerous challenges including:

1.  The site’s location within a flood plain;

2.  The long abandonment of the complex leading to deterioration in structural elements;

3.  Stabilizing the structure for hurricane-level wind forces;

4.  The change of use associated with adapting the barn-like structure for public use; and

5.  Maintaining the historic integrity of a prominently-located building contributing to the Watch Hill Historic District’s historic designation



Holdredge Garage is now a significant contributor to the economic prosperity of Watch Hill. It provides 21,000 square feet of reclaimed rentable space and storage. The ground floor houses three retail units and an atrium. The upper floors provide apartment housing to be rented to Watch Hill’s hotels’ staff. The cost of construction for this project was approximately $6 million.

Architect: NewPort Architecture, LLC

Contractor: Pariseault Builders

Holdredge Garage served as a livery stable, housing, and an automobile storage facility before its abandonment.

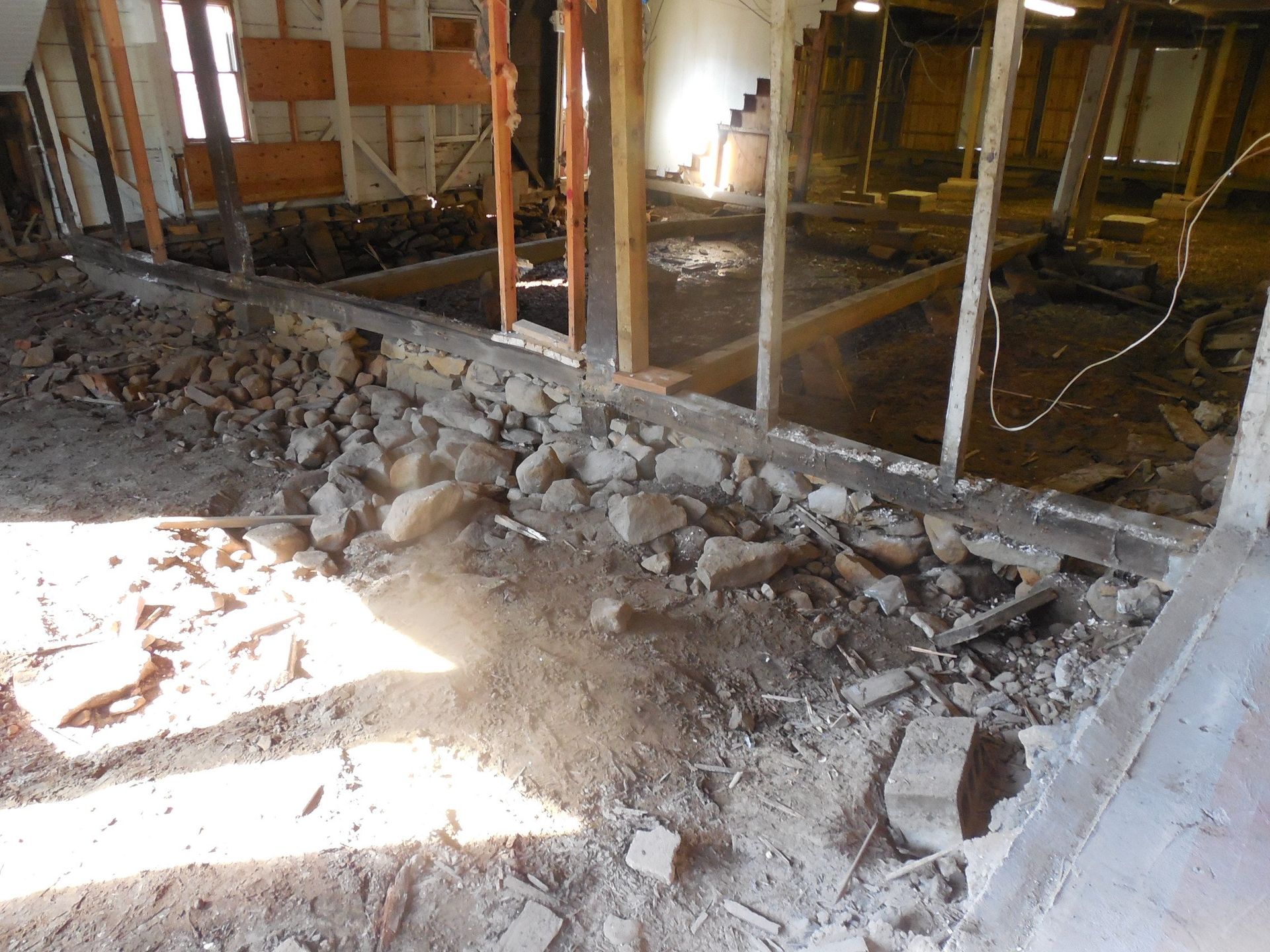

The original first floor sleeper framing was heavily deteriorated and incapable of supporting the required 100psf live load for retail space. It was decided to demolish the first floor framing and re-support the building on an elevated concrete flat slab.

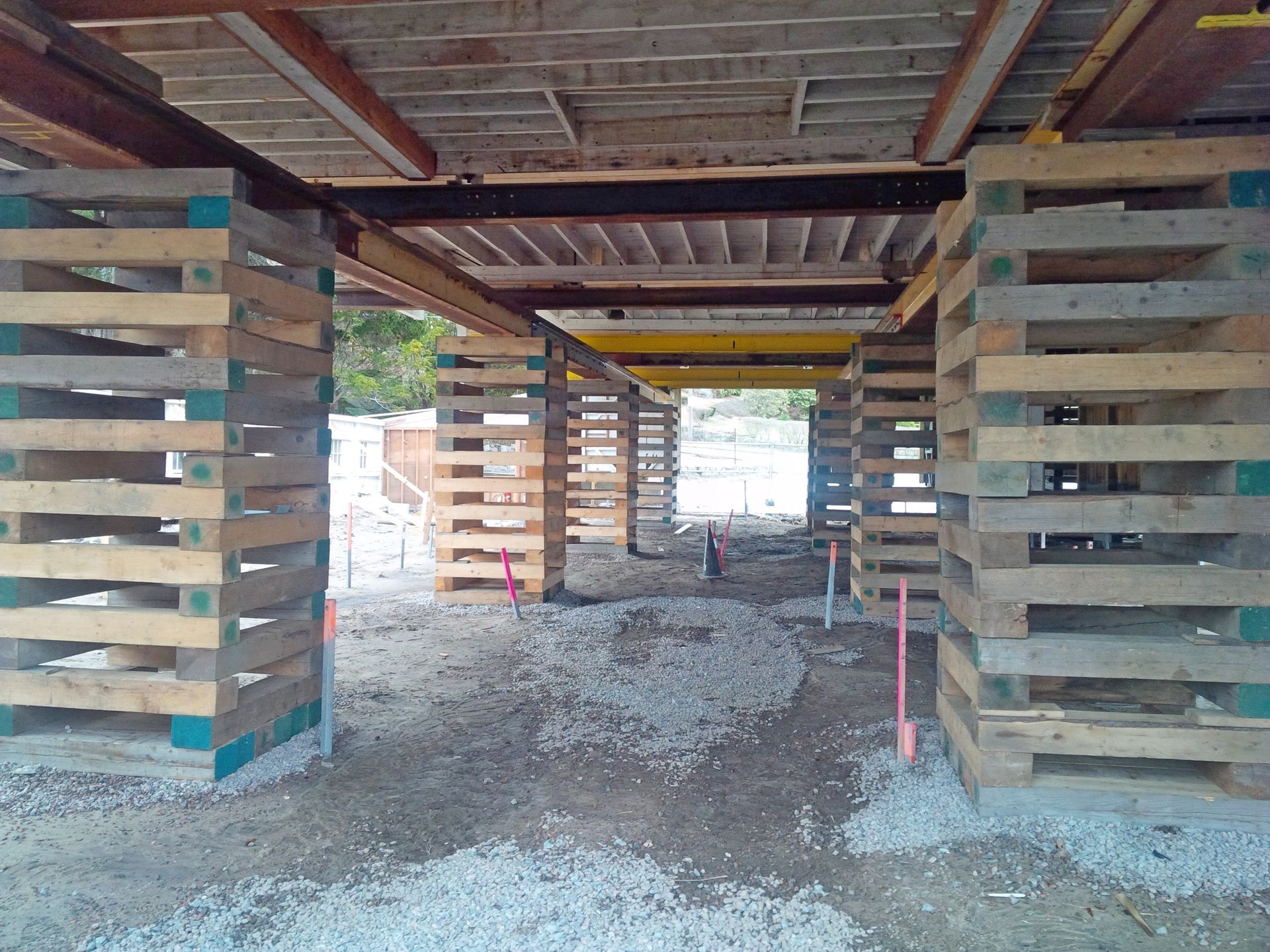

The complex was temporarily elevated 8 feet and set on cribbing while the new foundations were constructed.

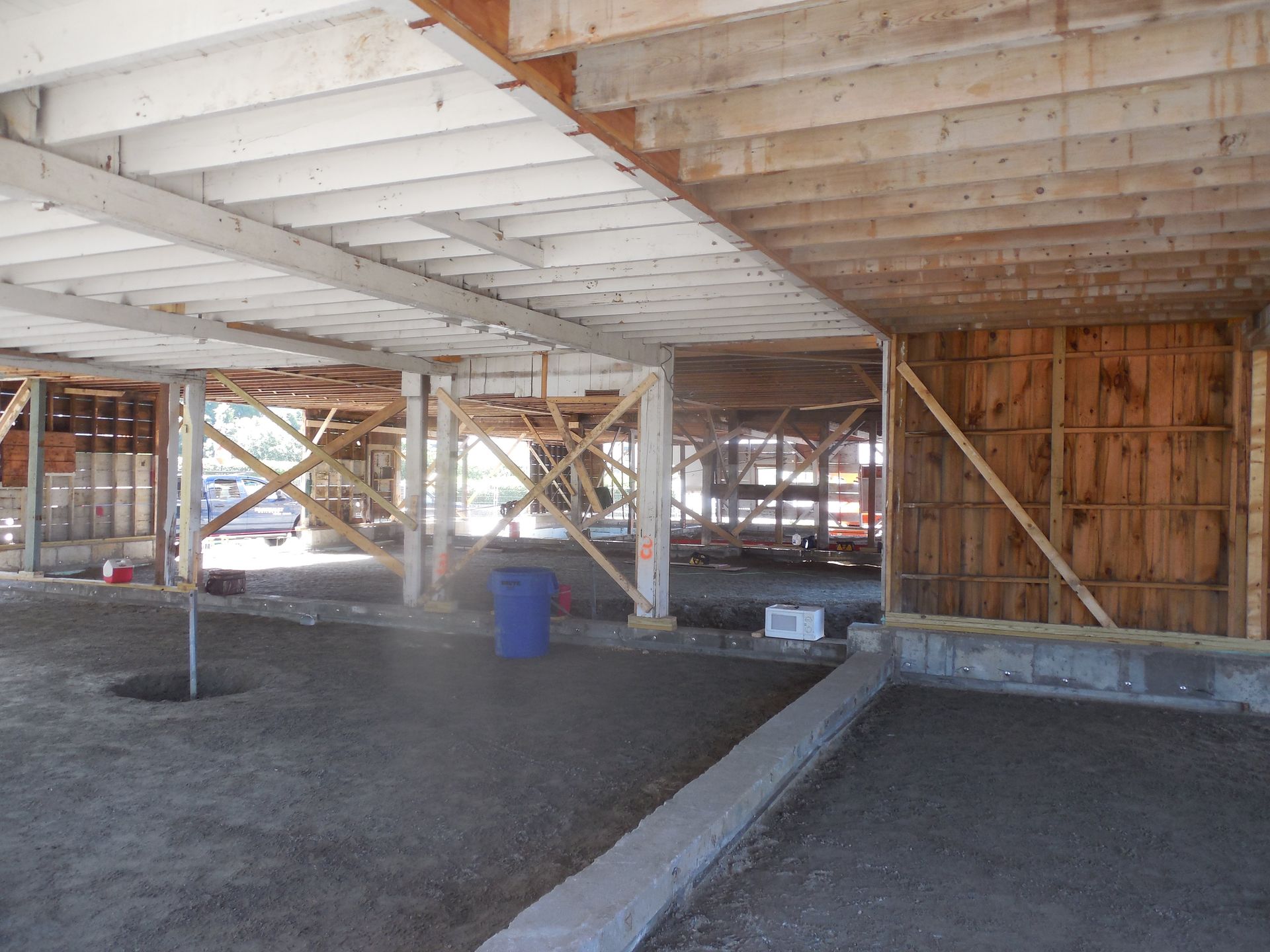

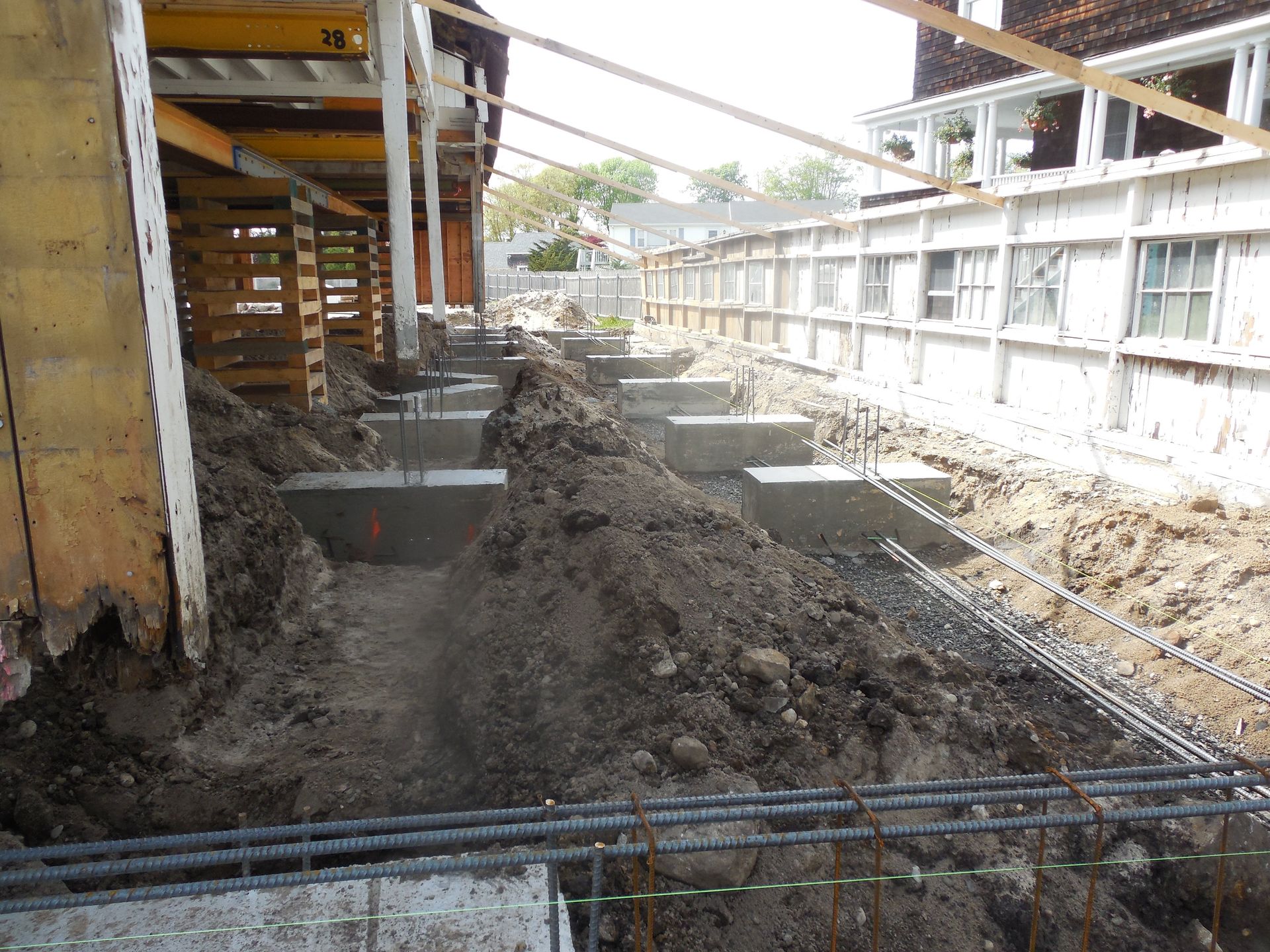

Holdredge Garage is now supported on a new foundation consisting of reinforced concrete grade beams and spread footings supported on helical piles. A helical pile foundation was selected due to the presence of man-made fill and tidal deposits; the complex was temporarily elevated eight feet to allow pile installation.
As required by the Secretary of the Interior’s Standards for the Treatment of Historic Properties, all modifications and reinforcements were designed to be obvious interventions and to maintain as much historic fabric as possible.

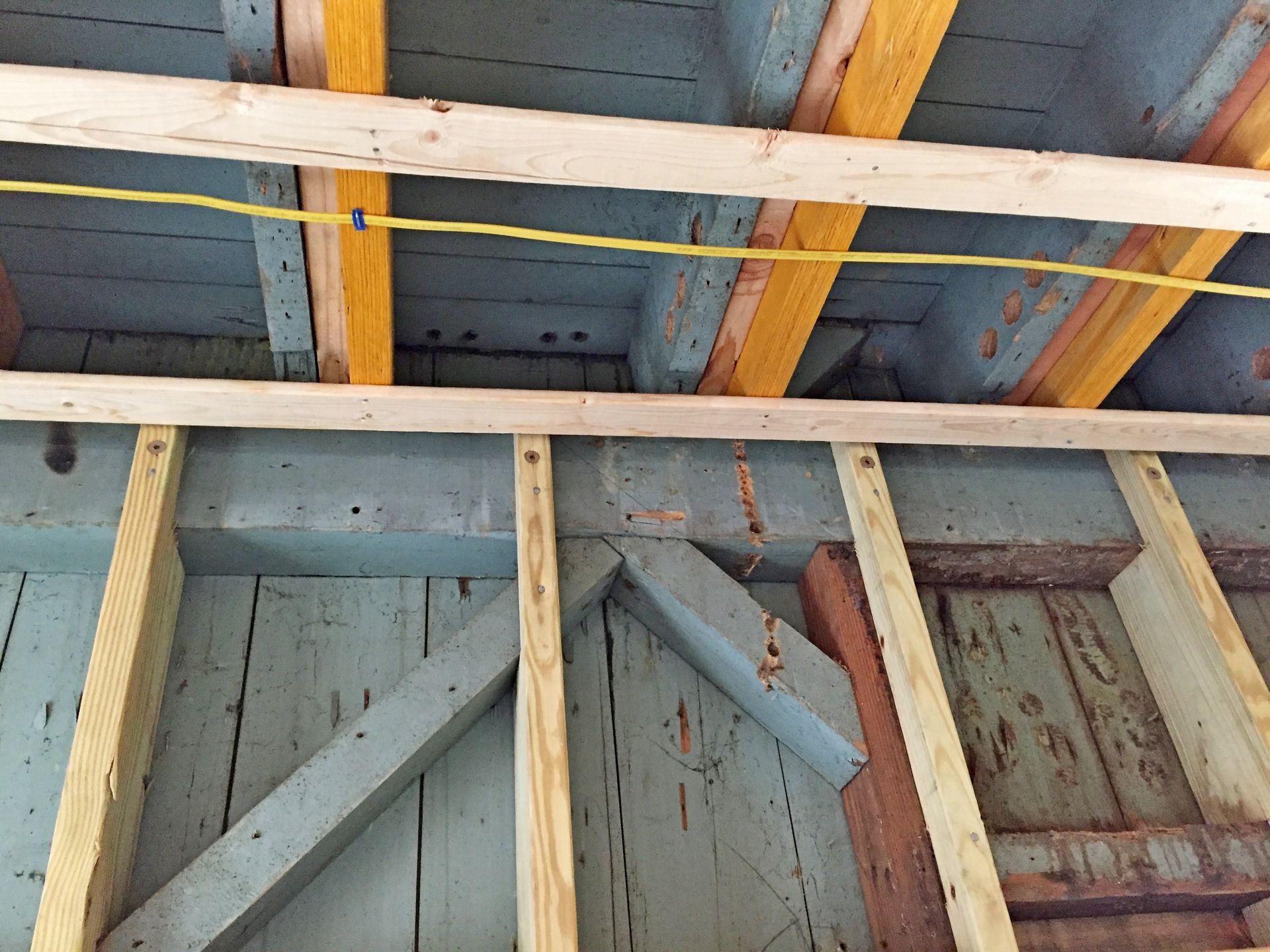

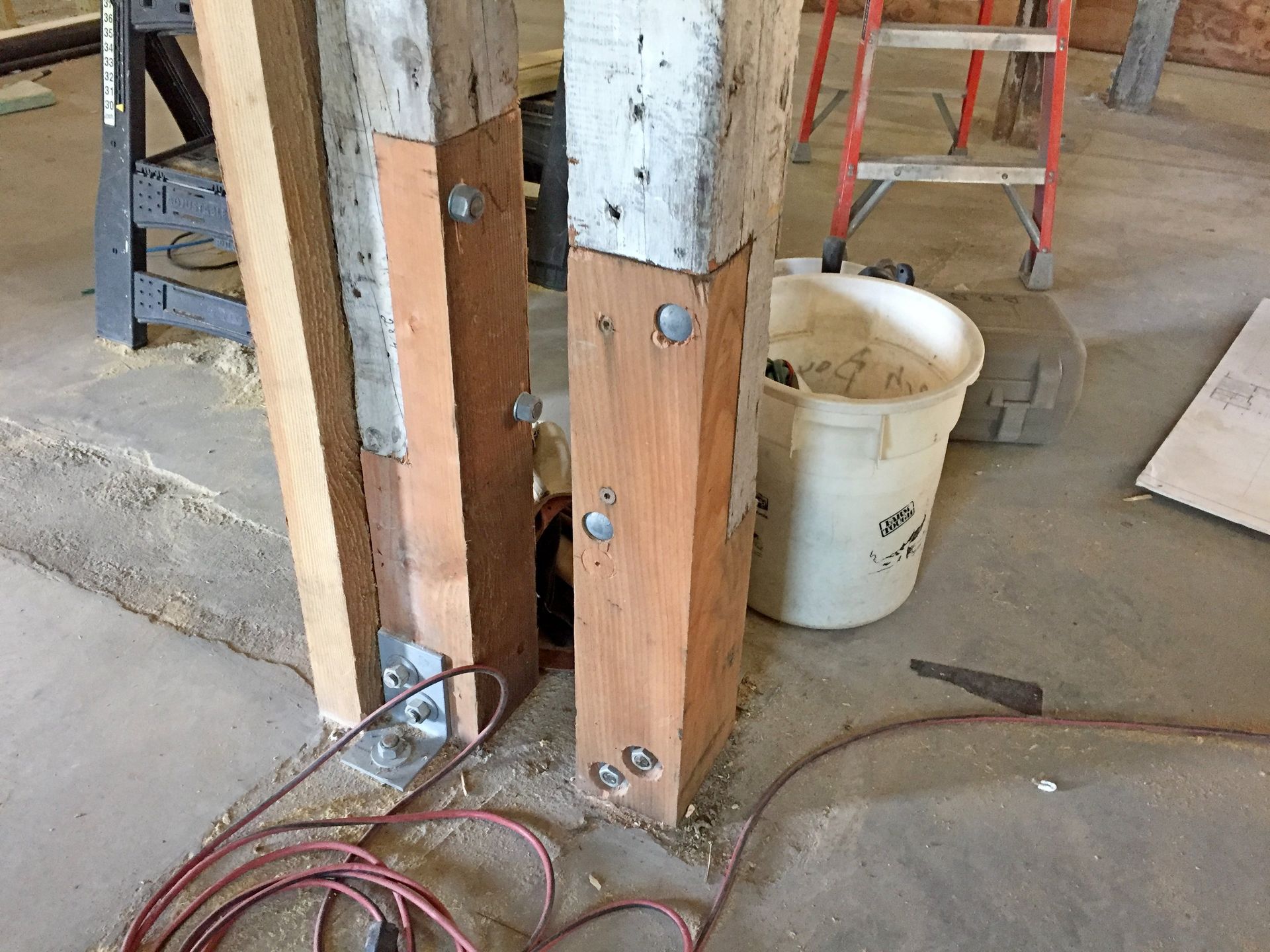

The wall framing, which mimicked the horizontal girt system of a barn, was reinforced with repetitive dimensional lumber. The strength of the existing sheathing was utilized and supplemented with interior plywood sheathing in some areas of the building. The walls and floors were tied together to ensure lateral stability against hurricane-level forces.

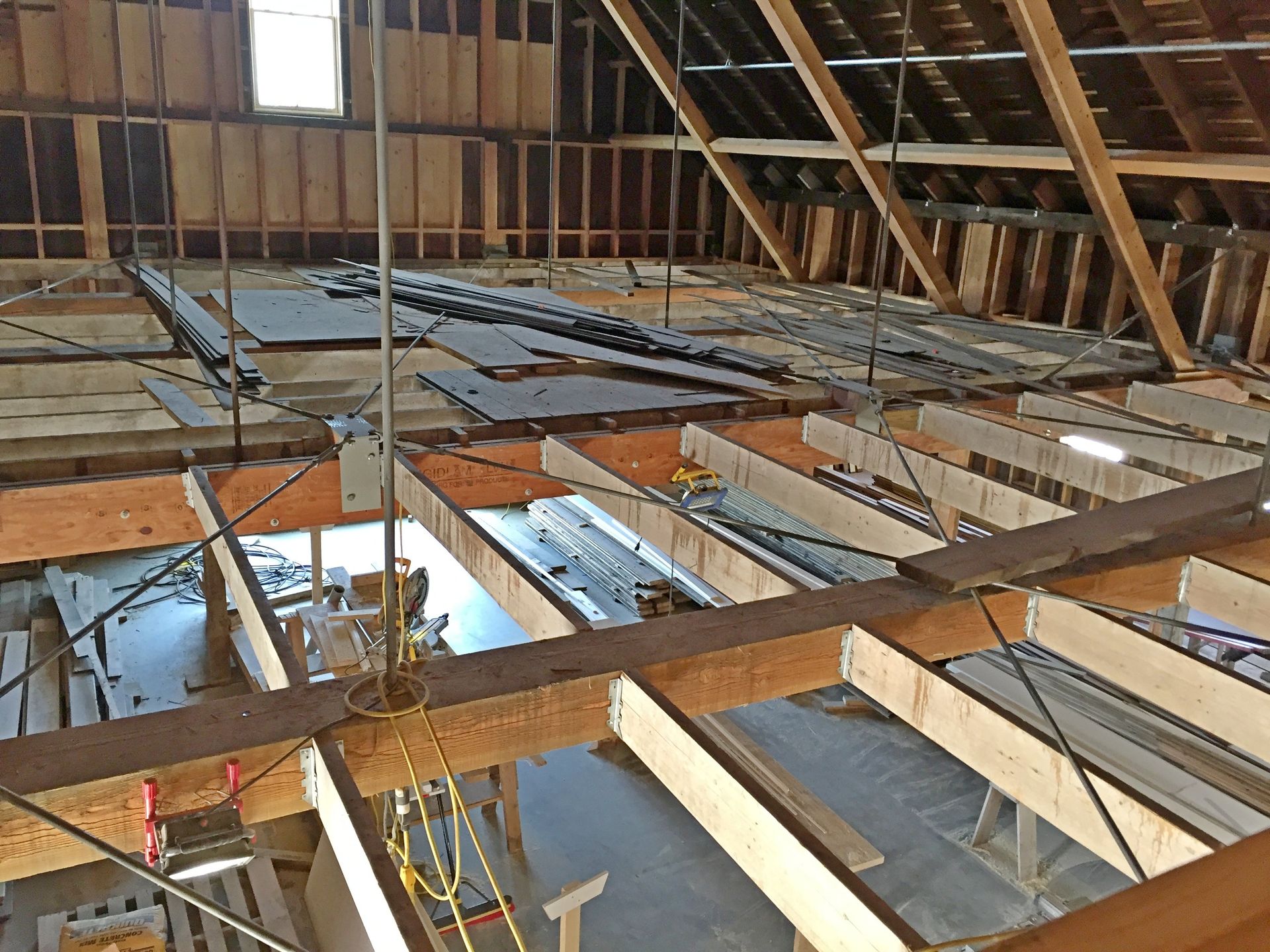

Floor framing was removed in two areas of the building. At the central atrium, an engineered lumber drag strut was designed at the second floor level to ensure lateral stability. At a double-height storage area, steel x-bracing was installed to allow the second floor to be removed for aesthetic effect.

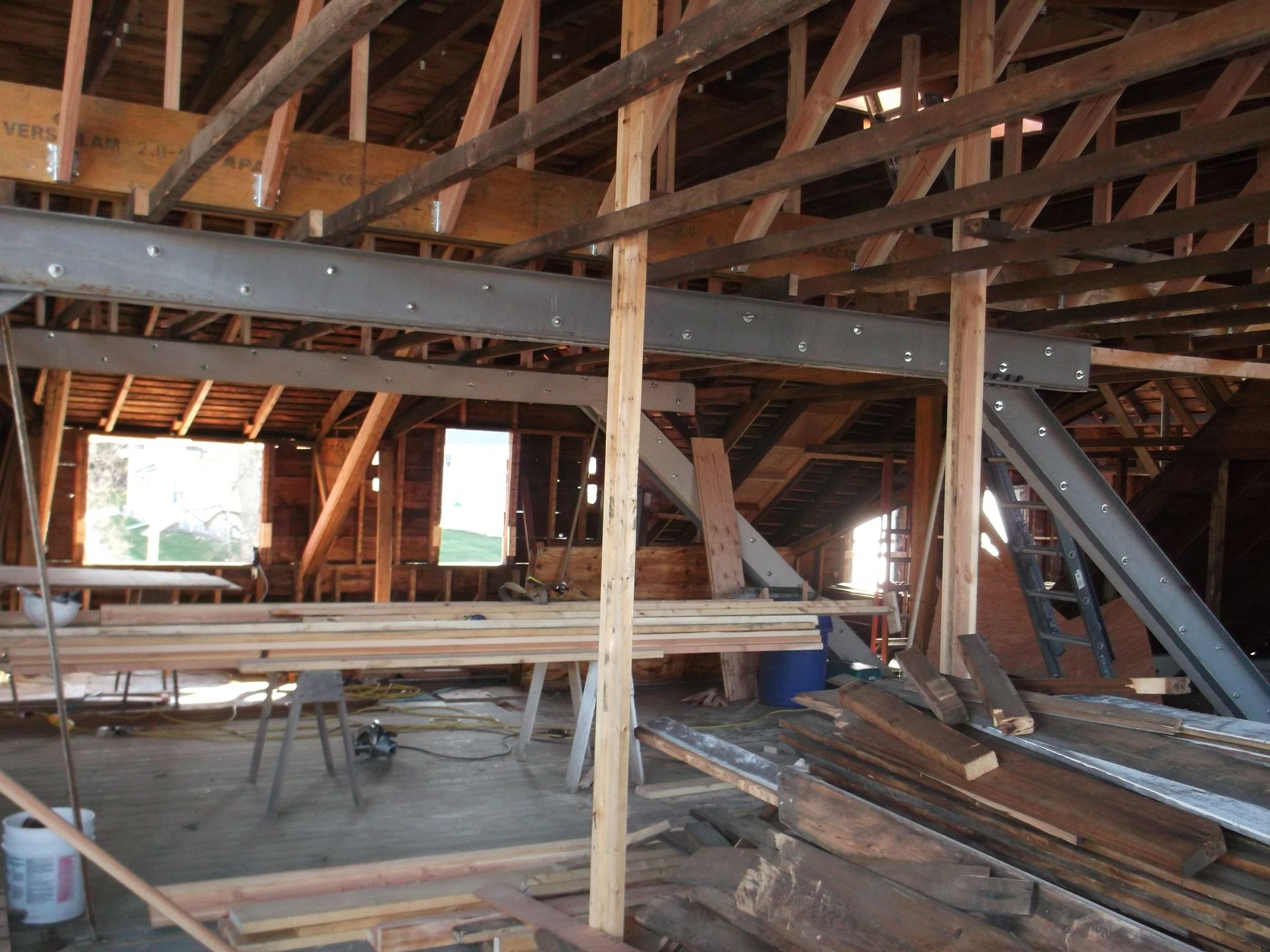

The timber superstructure is now stabilized with a legitimate load path, and capable of supporting the required live loads. A combination of steel, rough sawn lumber and engineered lumber was used to reinforce the gravity load-supporting framing, including the trusses which support the roof and multiple floor levels.

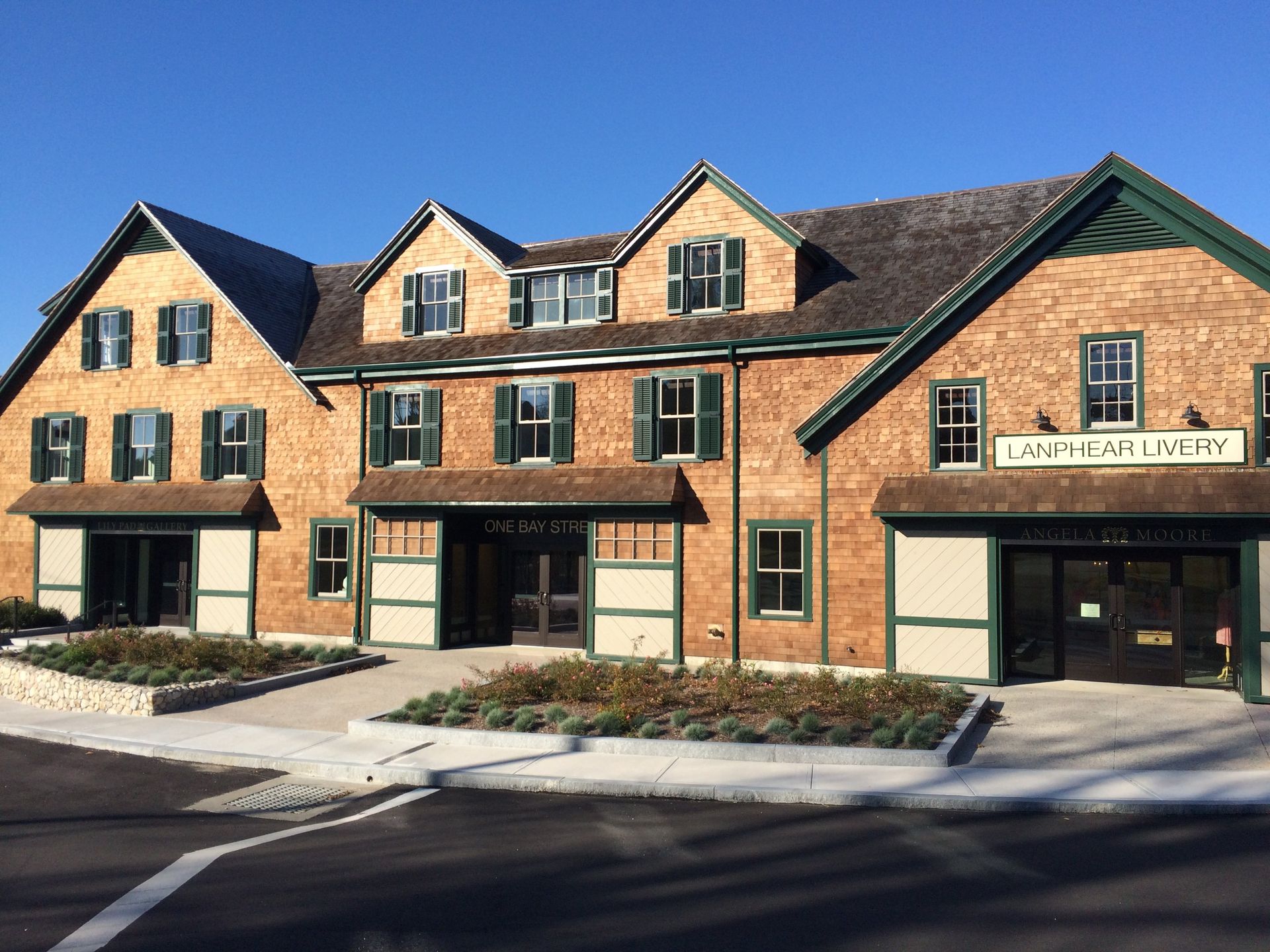

Completed Lanphear Livery – Front View

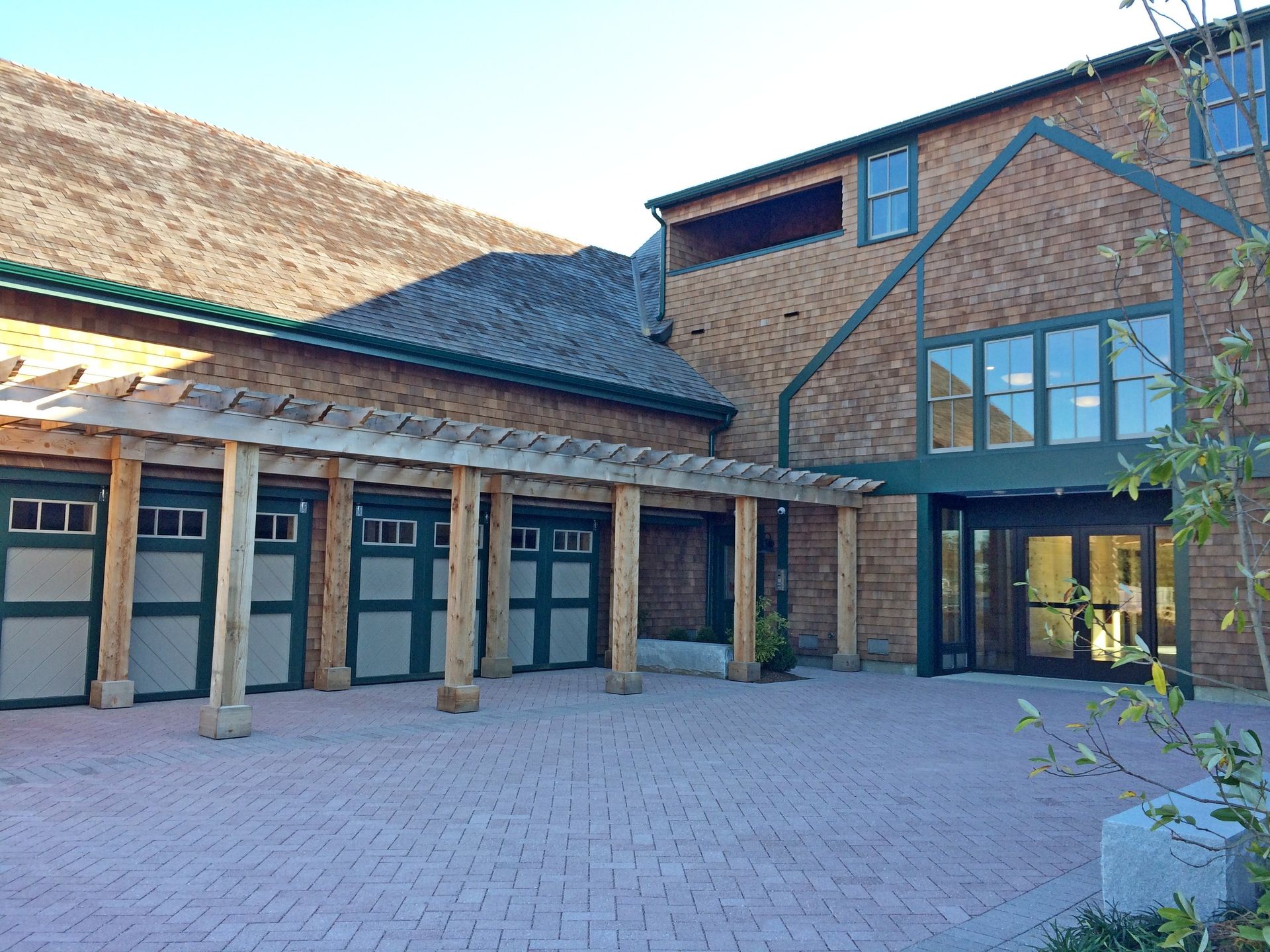

Completed Lanphear Livery – Rear View

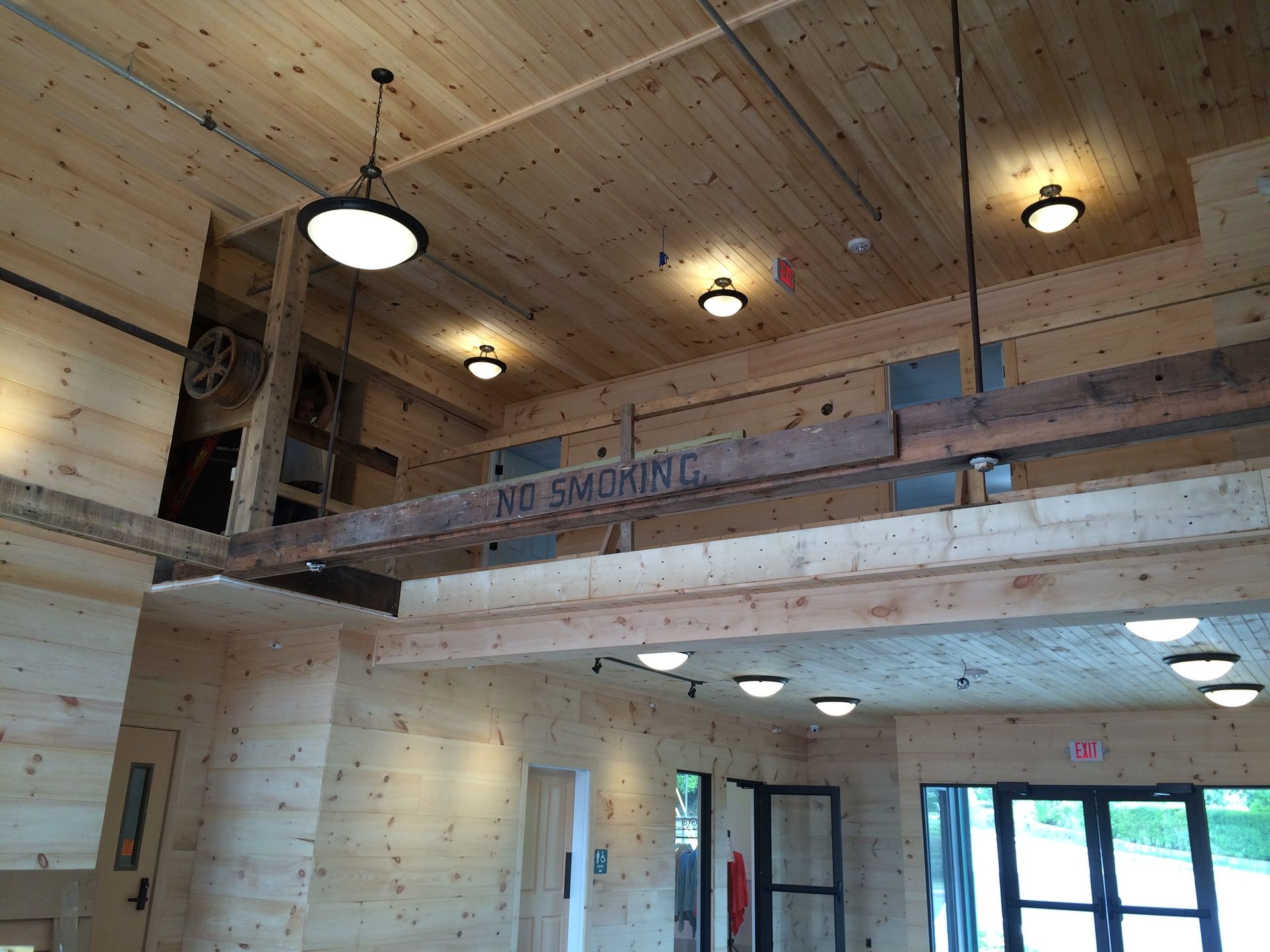

Completed Lanphear Livery – Interior View of Atrium
